Product Details
Application
Supervision Of Gas Flames, Yellow Or Blue Oil Flames, Ignition Spark Proving
Operation
Activated During Each Half Wave When UV Radiation Of The Flame Is High Enough
Specifications
Die-cast Aluminium Housing With 1 In. Mounting Coupling, Direct Mounting On Burner, Intermittent Use, IP54 Protection, Temperature Range: -20 To 60°C
Description

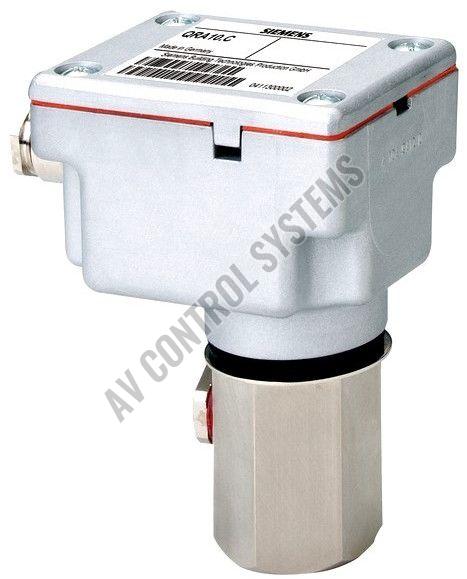

The UV flame detectors QRA10.C and QRA10M.C for the supervision of gas flames, yellow or blue oilflames and for ignition spark proving.
Operation: when the UV radiation of the flame in the position of the detector is high enough, the detector is activated during each half wave, giving a signal current.
Specifications:
- Die-cast aluminium housing with a 1 in. mounting coupling (D) and a connection facility for cooling air. This housing has a bayonet fitting which allows it to be secured either directly to the mounting coupling or to the glass holder AGG06. The mounting coupling can be screwed to a viewing tube or to the ball head AGG07.
- Direct mounting on burner
- Intermittent use
- IP54 protection.
- Temperature Range: -20 to 60 °C.
